Description

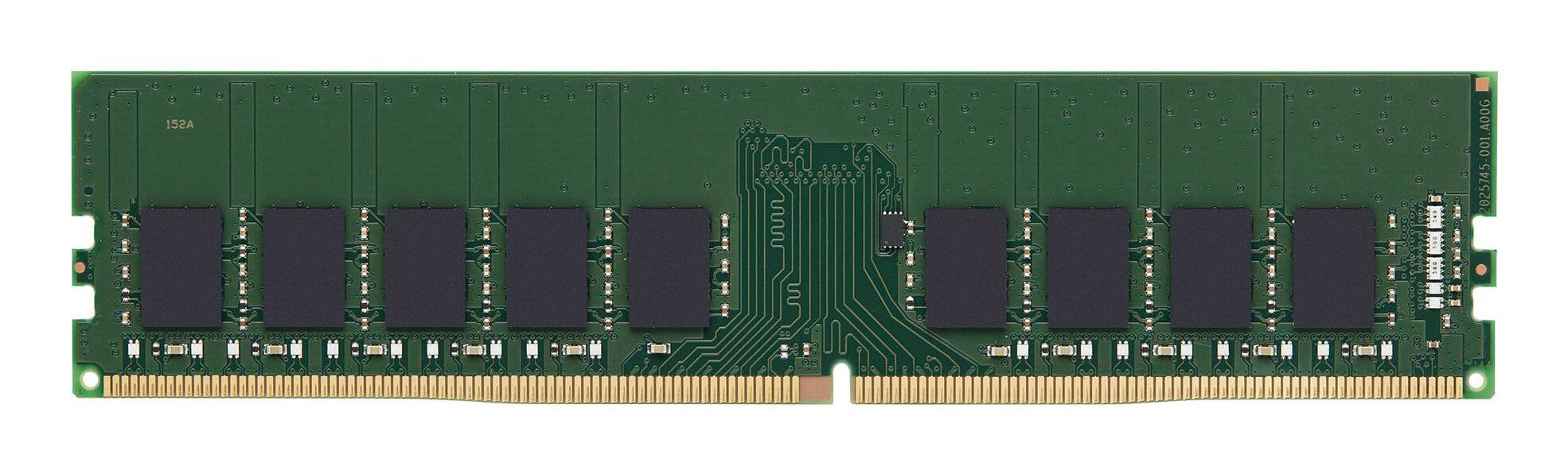

Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Dual-rank On-board I2 serial presence-detect (SPD) EEPROM Temperature sensor with integrated SPD 16 internal banks; 4 groups of 4 banks each Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command and address bus PCB: Height 1.23″ (31.25mm) RoHS Compliant and Halogen-Free Kingston’s KSM32ED8/16HE is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. Features JEDEC standard Yes SPD profile Yes Programming power voltage (VPP) 2.5 V Row active time 32 ns Row cycle time 45.75 ns Module configuration 2048M x 72 Memory voltage 1.2 V Memory ranking 2 Memory channels Dual-channel Memory data transfer rate 3200 MT/s CAS latency 22 ECC Yes Memory form factor 288-pin DIMM Component for Server Internal memory type DDR4 Memory layout (modules x size) 2 x 8 GB Internal memory 16 GB Buffered memory type Unregistered (unbuffered) Operational conditions Storage temperature (T-T) -55 – 100 °C Operating temperature (T-T) 0 – 85 °C Technical details Compliance certificates RoHS Weight & dimensions Height 31.2 mm Width 133.3 mm leaflet
